pcb-tools
Tools to handle Gerber and Excellon files in Python.
Usage Example:
import gerber
from gerber.render import GerberCairoContext
# Read gerber and Excellon files
top_copper = gerber.read('example.GTL')
nc_drill = gerber.read('example.txt')
# Rendering context
ctx = GerberCairoContext()
# Create SVG image
top_copper.render(ctx)
nc_drill.render(ctx, 'composite.svg')
Rendering Examples:

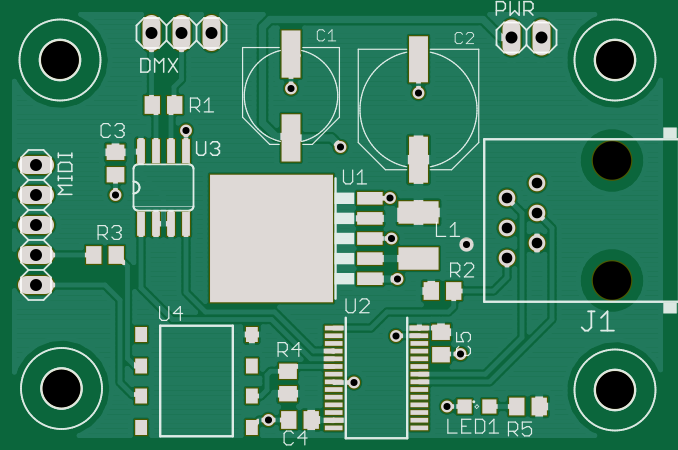

###Top Composite rendering
Source code for this example can be found here.
Install from source:
$ git clone https://github.com/curtacircuitos/pcb-tools.git
$ cd pcb-tools
$ python setup.py install
