pcb-tools
Tools to handle Gerber and Excellon files in Python.
Useage Example:
import gerber
from gerber.render import GerberSvgContext
# Read gerber and Excellon files
top_copper = gerber.read('example.GTL')
nc_drill = gerber.read('example.txt')
# Rendering context
ctx = GerberSvgContext()
# Create SVG image
top_copper.render(ctx)
nc_drill.render(ctx, 'composite.svg')
Rendering Examples:

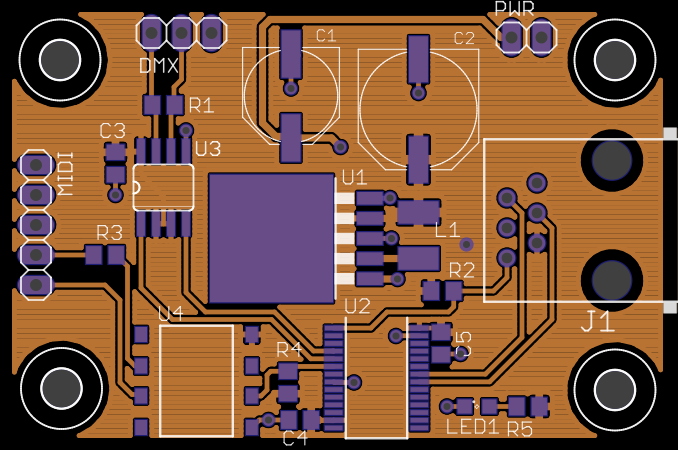

###Top Composite rendering
Source code for this example can be found here.
